Three-dimensional five-axis laser cutting machine
LP3019D-A 3D 5-axis laser cutting machine is specially designed for rapid cutting of automotive thermoformed parts, with high cutting quality and safety stability, suitable for 24-hour mass production.
Product Features

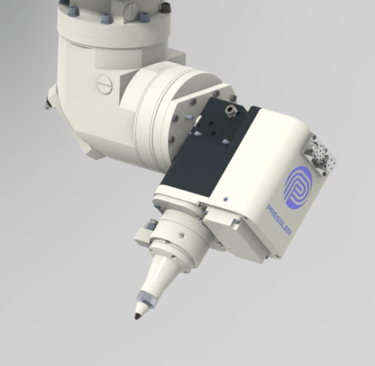

The electric and gas slip rings ensure that the cutting head can rotate n*360° indefinitely.
The homemade gas slip ring ensures both gas tightness and gas flow for higher reliability.

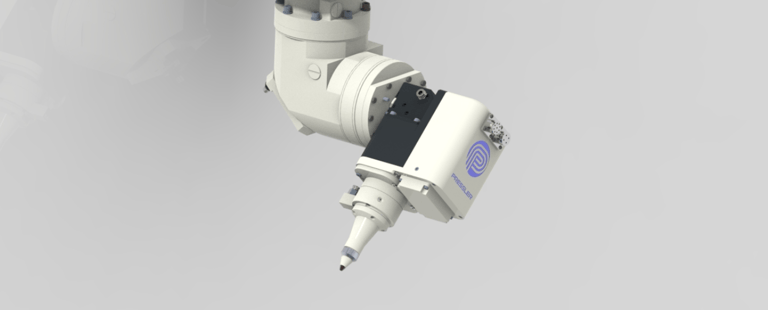

The cutting head is equipped with anti-collision function, which can effectively avoid damage to the equipment.
The cutting head is equipped with adaptive zoom capability, which can meet the cutting of plates of various thicknesses.
X, Y, Z-Axis Positioning Accuracy ±0.05mm
C, A-axis positioning accuracy ±0.05mm
Exchange table positioning accuracy ≤±15”
Single-axis maximum positioning speed (X, Y, Z) ≤±15”
Maximum acceleration of A-axis 120 rad/s²
Maximum acceleration of C-axis 60 rad/s²
Maximum load per side 350 kg
Power supply 3-phase 380 V, 50 Hz

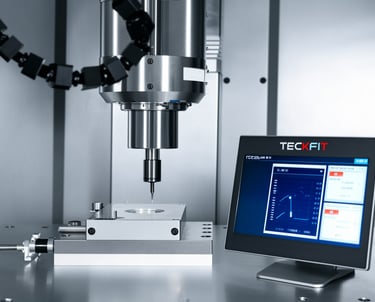

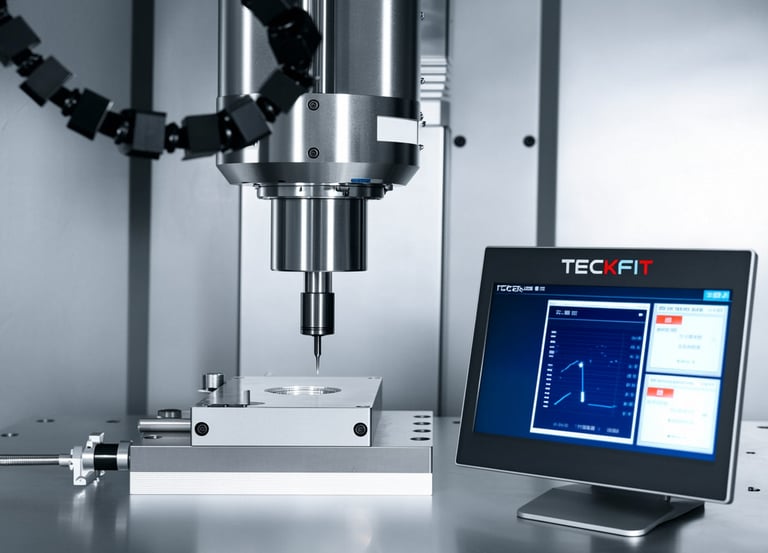

Silicon carbide laser vertical peeling equipment
This device uses visible light or infrared laser beams to perform invisible cutting on transparent materials such as coated glass and ordinary glass.
Product Features

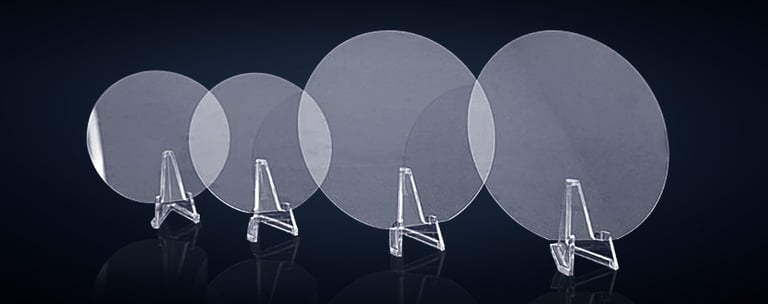

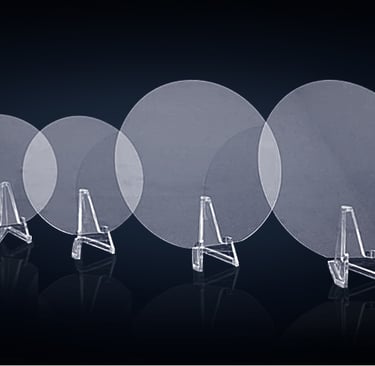

The silicon carbide laser vertical peeling equipment is a device used for cutting third-generation semiconductor material (silicon carbide) ingots, fully compatible with the processing requirements of 4/6/8-inch ingots.
The equipment integrates a multi-axis ultra-precision motion platform and a proprietary high-energy laser modulation system. It employs self-developed optical pathways and software to achieve intelligent path planning and precise motion control.
It innovatively combines a machine vision guidance system with multi-spectral online monitoring modules, establishing a closed-loop monitoring system based on digital twins.
This enables efficient material processing with minimal waste and high yield rates.
